25M 30Black Leds Dome Camera with Environmental Housing

The KH-D870V3 dome IR camera uses the 1/3" Sony Super HAD CCD II which supports an ultra high 700 TV lines of resolution in color (day mode) and 720 lines in black and white (night mode).

The 2.8-12mm varifocal lens gives you great control over the focal length of the camera. Adjusting this CCTV security camera's setting down to 2.8mm will yield a wide field of view, or move it anywhere up to 12 mm to zoom in to tighten viewing angle into a specific area. For example, mounting this dome camera 20 feet away from a target such as a cash register or point of sale would allow one to effectively monitor that specific station.

In addition to being a high end night vision camera, the KH-D870V3, KH-D870V3 also has built in WDR (Wide Dynamic Range)capabilities which allows for compensation in foreground and background lighting; which essentially combines the darkest part of the image with the brightest part to produce one highly detailed and balanced image


◆1/3"SONY SUPER HAD CCD
◆20-25M IR Distance
◆30 pcs 5mm Back IR LEDs
◆OSD Cable, 3DNR, D-DWR, HLC, Exposure control for IR light, Motion Detection
◆2.8-12mm/3.6-16mm Mage Pixel Leds Optional
◆Color to B/W

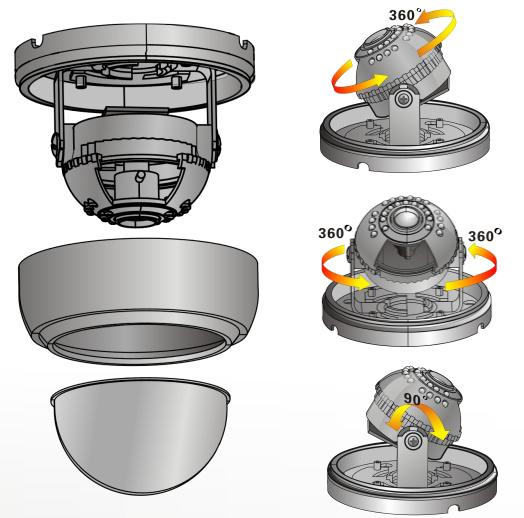

◆3-Axis bracket
◆AC24V/12V Optional
◆Extremely strong Plastic housing

25M 30Black Leds Dome Camera1.jpg

25M 30Black Leds Dome Camera2.jpg

25M 30Black Leds Dome Camera3.jpg



Model

KH-D842V3

KH-D860V3

KH-D870V3

Image Sensor

1/3" COLOR SONY Super HAD CCD

1/3" COLOR SONY Super HAD CCD

Horizontal Resolution

420TVL

600TVL

700TVL

Image Resolution

PAL:500(H)×582(V),

PAL:752(H)×582(V),

PAL:976(H)×582(V),

NTSC:510(H)×492(V)

NTSC:768(H)×494(V)

NTSC:976(H)×494(V)

IR LEDs

30pcs Ø5mm Black IR LEDs

IR Distance

20-25m

Lens

2.8-12mm Vari-focal Lens,             (4-9mm lens Optional)

Minimum illuminator

0.1LUX/F1.2

0.01LUX/F1.2

S/N Ratio

>48dB

>58dB

AES

1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC)

WDR

D-WDR

D-WDR

DNR

2D-DNR

3D-DNR

OSD

OSD

OSD

White Balance

ATW

ATW/Manual/Auto

AGC

AUTO

Auto/Manual/Off

BLC

ON

ON/OFF

Scanning System

NTSC:525 Lines 2:1 Interlace/PAL:625 Lines 2:1 Interlace

synchronization System

Internal Synchronization

Video Output

1.0Vp-p,75Ω

Voltage

DC12V (9V ~ 15V)

Operating Environment

-20°C~60°C / 10% ~ 95%RH                               ( AUTO Temperature Control Optional)

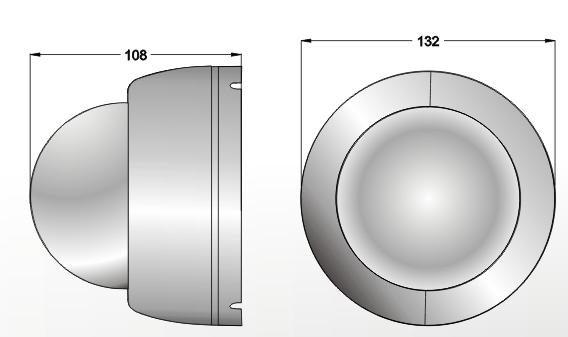

Dimension

13.2x10.8cm

Weight

0.6kg
